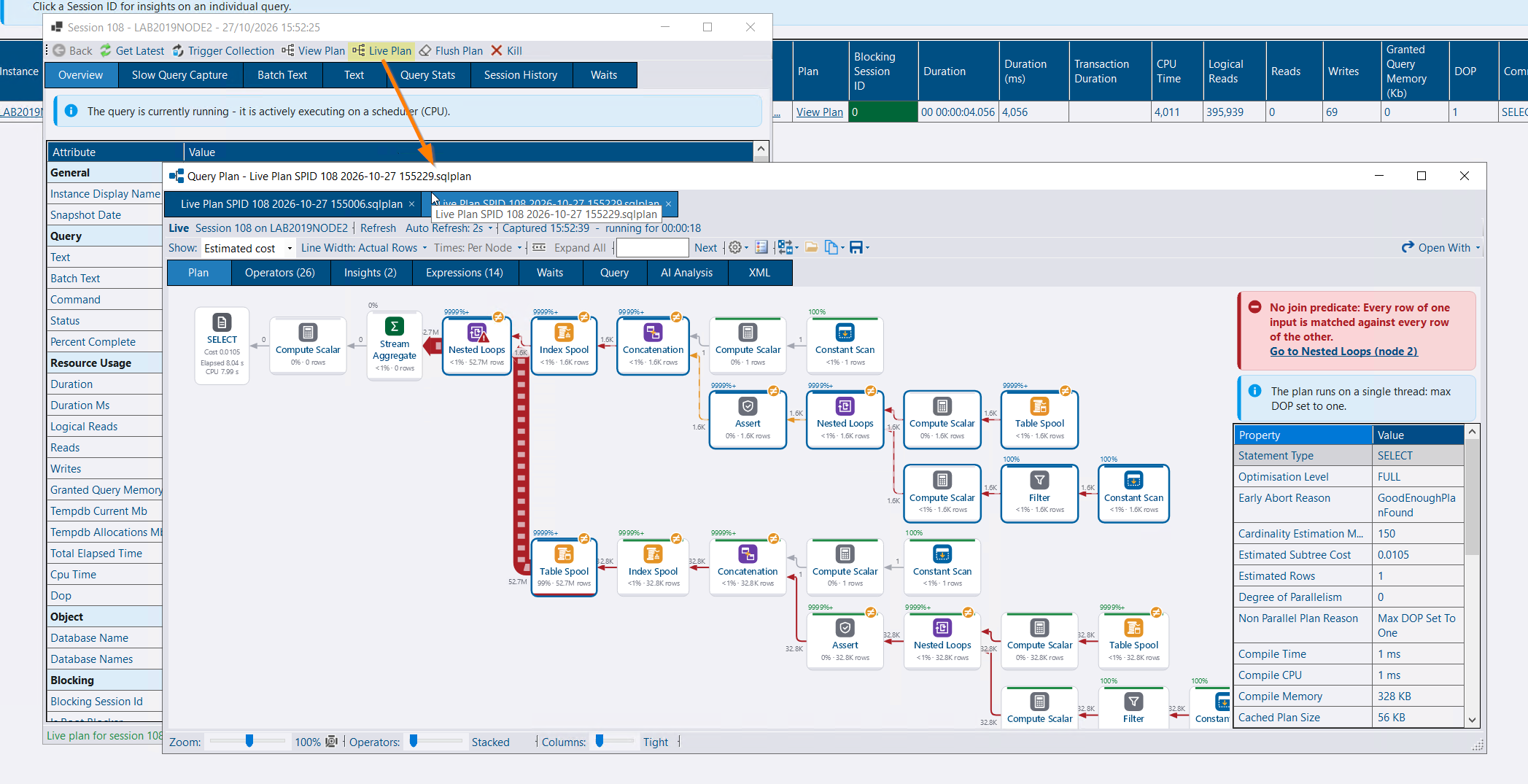

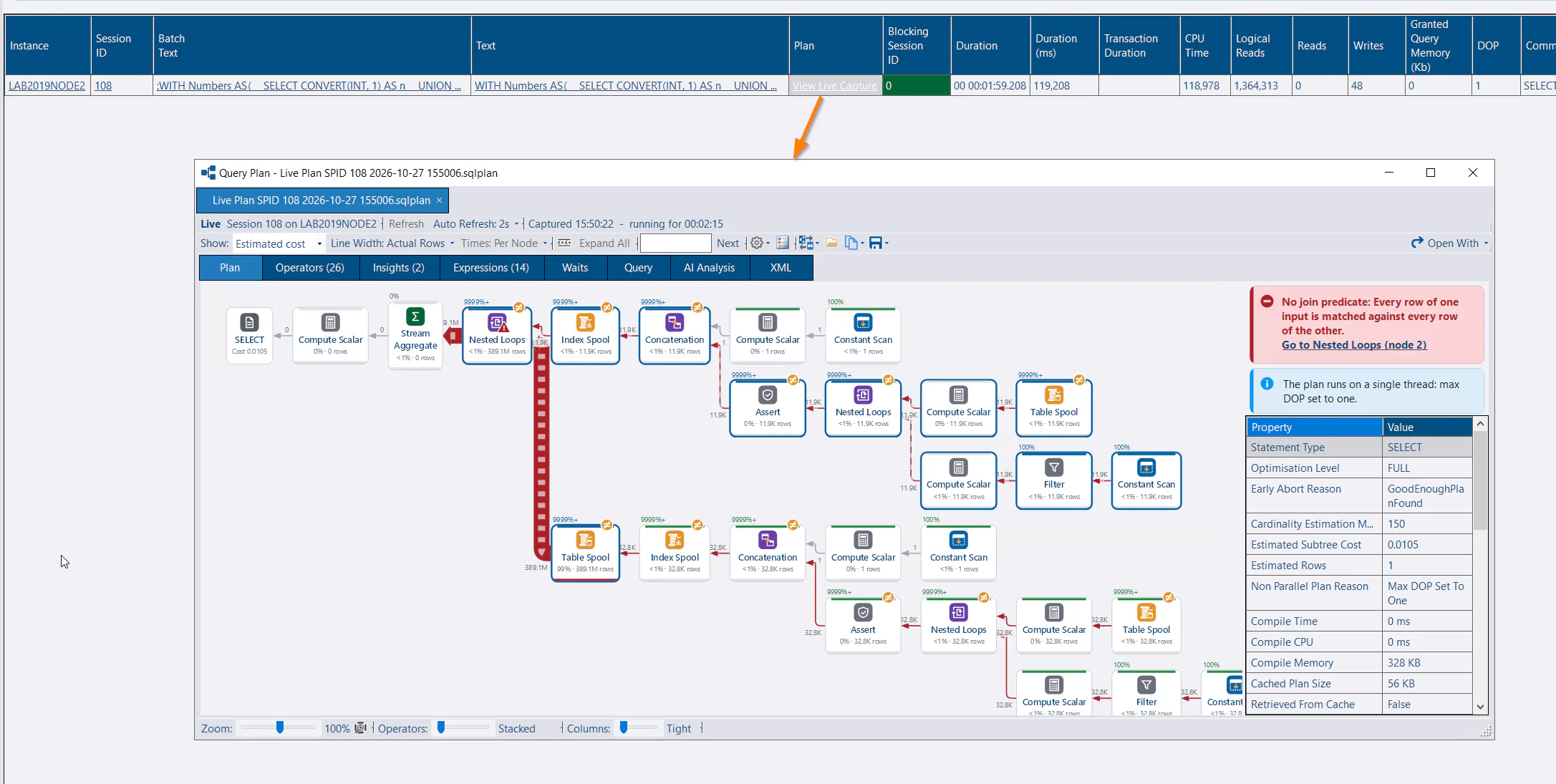

Live Plan on the session detail, and Live Query Plan on the Running Queries grid, are available for a running request on an instance with messaging. The Messaging role is required, the same as plan collection. The plan comes from sys.dm_exec_query_statistics_xml. Refresh (F5) and Auto Refresh (off, or every 2, 5, 10 or 30 seconds, defaulting to 2) are on the Live bar. Auto refresh pauses on a hidden tab and stops after 30 minutes, after three failures in a row, or when the query finishes. The last capture stays on screen.

Each refresh keeps zoom, selection and the properties grid where you left them. Operators that are moving rows are highlighted, with a progress strip against the estimate. Statements such as WAITFOR, BACKUP and DBCC have no plan. Otherwise lightweight query profiling has to be on for a live plan to be available. The request is read before and after the plan or the counters, and a capture is discarded if the statement changed while it was being read, so a MARS session or the next batch is not attached to the plan you were watching.

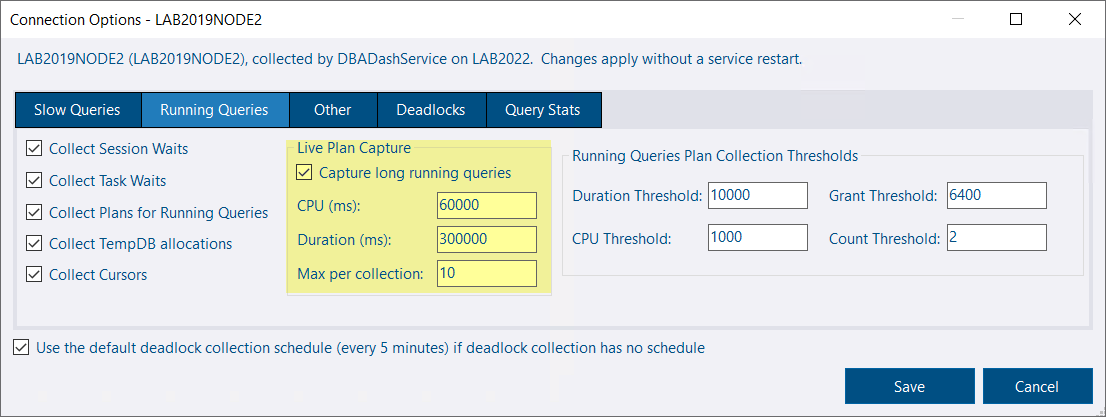

Capture long running queries is off by default. It takes a CPU threshold, a duration threshold and a maximum per collection. The defaults are 60 seconds of CPU, 5 minutes of duration, and 10 queries, highest CPU first. It only applies to queries that also meet the plan collection threshold, and a blocked query does not count towards the duration. The Plan link shows View Live Capture where one was stored. Each capture opens on its own tab, and Refresh follows the query live if it is still running. Captures are kept for as long as running queries. See Running Queries.

The row is the one under the pointer. A right-click in SSMS does not select the row, so the extension hit-tests the grid, and uses the selection when the menu was opened from the keyboard. The session, and the request start time when the grid has a start_time or request_start_time column, come from that row, so a session that has moved on to another request is left alone.

The extension takes the query window’s connection (Windows or SQL authentication; Microsoft Entra is not supported yet) and hands it to the app in a temp file protected with DPAPI for the current Windows user. Any password is removed from the connection string and protected again inside the file. The app only accepts these files from the extension’s temp location, in the version it knows, and less than 10 minutes old. It connects itself and runs the same SQL the service uses for a live plan from the GUI. See SSMS Extension.

Turn on Allow Connection Changes in the service config tool. That also allows schedule changes. The user needs the ManageConnections role and the Messaging role. db_owner can do the same without either role. Messaging has to be enabled on the service. The ManageConnections role includes schedule changes.

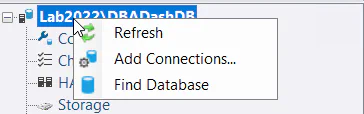

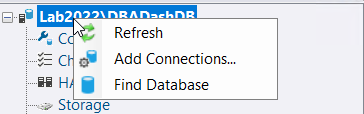

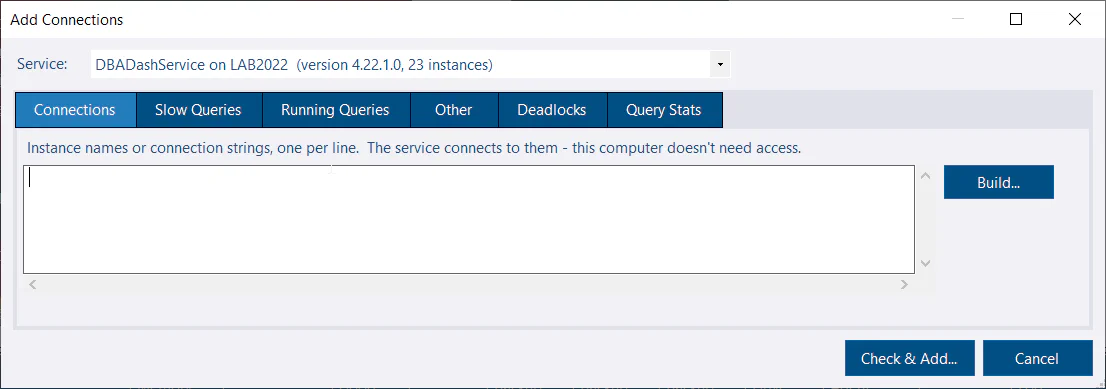

Add Connections… is on the root of the tree. Pick the service (ones that accept connection changes, defaulting to the one collecting the most instances), enter the connection strings and set the same options as the config tool: slow queries, running queries, live plan capture, deadlocks, query stats and the rest. The computer running the GUI does not need to reach the instance. The connection builder can build a string without connecting, and the strings are encrypted for that service before they are sent. The service publishes an RSA public key; the GUI encrypts with AES-GCM and wraps the key with RSA, so passwords are not readable in the broker queue or in SQS. The private key stays in the service’s memory.

The service connects as the service account and the review dialog shows the status, version, login and notes for each connection, including instances already collected by another service or marked deleted in the repository. Choose add, update, add anyway, add explicitly or skip for each row. Adding without a successful check is only offered for a row the check already reported as failed. If the service’s own check then fails, that connection is skipped. Deleted instances can be restored from the same dialog. Custom collections are not part of an add from the GUI. SQL connections only. Databases and read replicas discovered from a new connection are scanned in the background.

Connection Options… on an instance reads the current options from the service and saves them back. The connection string, ConnectionID, schedules, custom collections and settings that are not among those options are kept. Databases and read replicas discovered from the connection get the same options. Extended events sessions the change leaves unused are dropped. A session you created yourself is left alone.

Remove Connection… removes the connection from the service config, including databases and replicas discovered from it, clears pauses and temporary schedules, and by default drops the DBA Dash extended events sessions and marks the instance deleted in the repository. The service waits up to two minutes for collections that already started before it drops those sessions, so a collection still running does not recreate them afterwards.

The config tool uses the same options tabs and the same review dialog when connections are added there.

Changes are recorded in the User Actions report. A source saved by an older version without a ConnectionID has to be given one before these messages will run: DBADashConfig -a PopulateConnectionID, then restart the service. See Messaging.

Ctrl+wheel zooms, dragging pans, and dragging across the time axis zooms to that range. An overview strip shows the whole period. Hovering a bar shows the run. Running jobs are striped, and a line marks the current time. Status colours in the dark theme are lighter so a short run stays visible. The legend counts executions and shows or hides each status. Clicking a legend entry filters the chart. A job name filter and sort options (name, first start, total duration, failures) are on the toolbar.

Auto date grouping is the default. Runs closer together than the narrowest bar the chart can draw are merged, and a banner says so. When the zoom settles, the time in view is fetched again down to each run. A merged bar is coloured by the worst status it contains, and the legend, failure badges and tooltips still count each run.

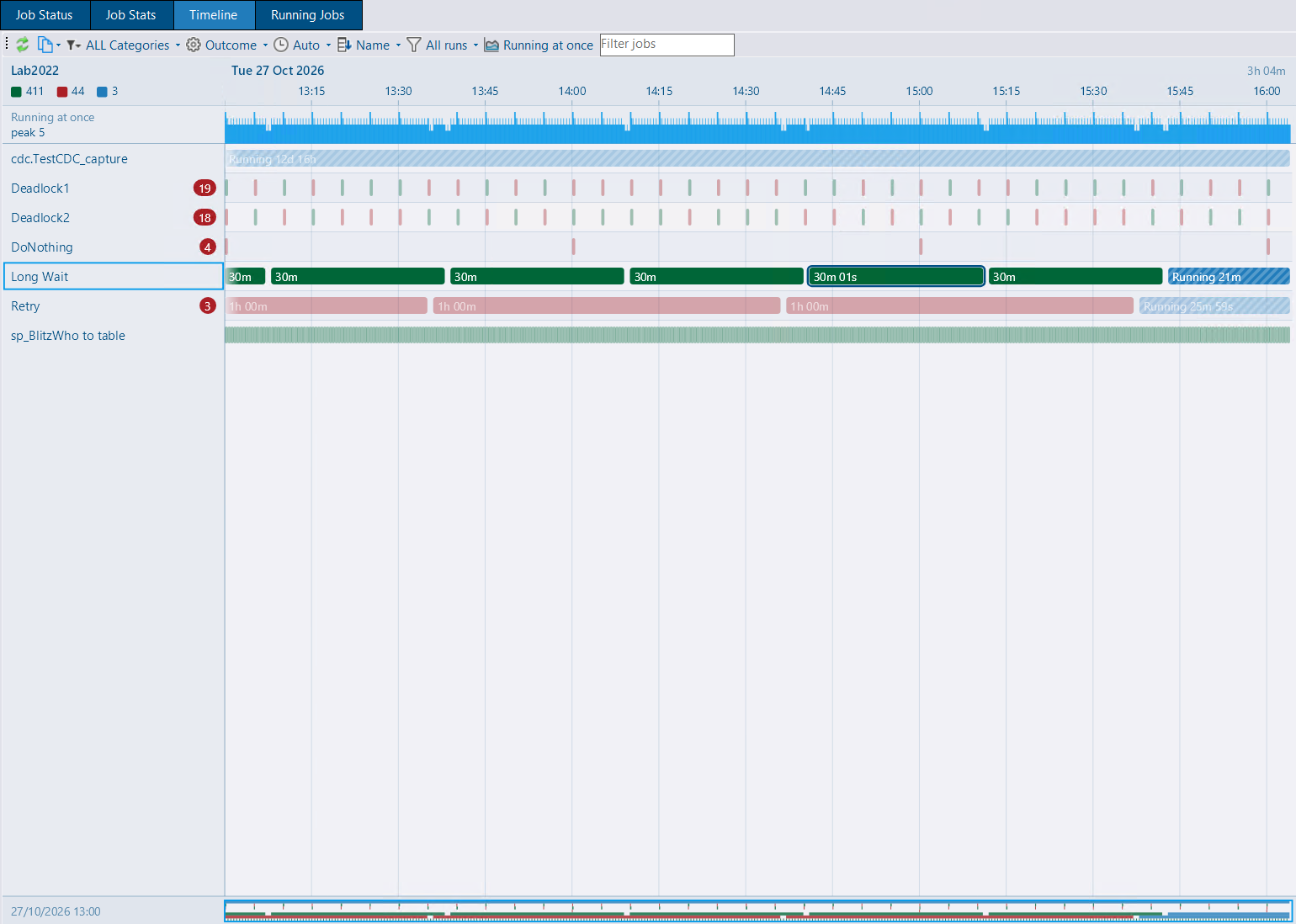

On the Agent Jobs node each instance is a collapsed row of busy spans. Expanding an instance loads its jobs. Double-click a span to expand that instance. A Running at once band, on by default, shows how many jobs were running at the same time. The Runs menu can hide runs shorter than a chosen length, from 10 seconds to an hour, or show only problems (failed, retry, cancelled). Both filters are applied when the data is fetched.

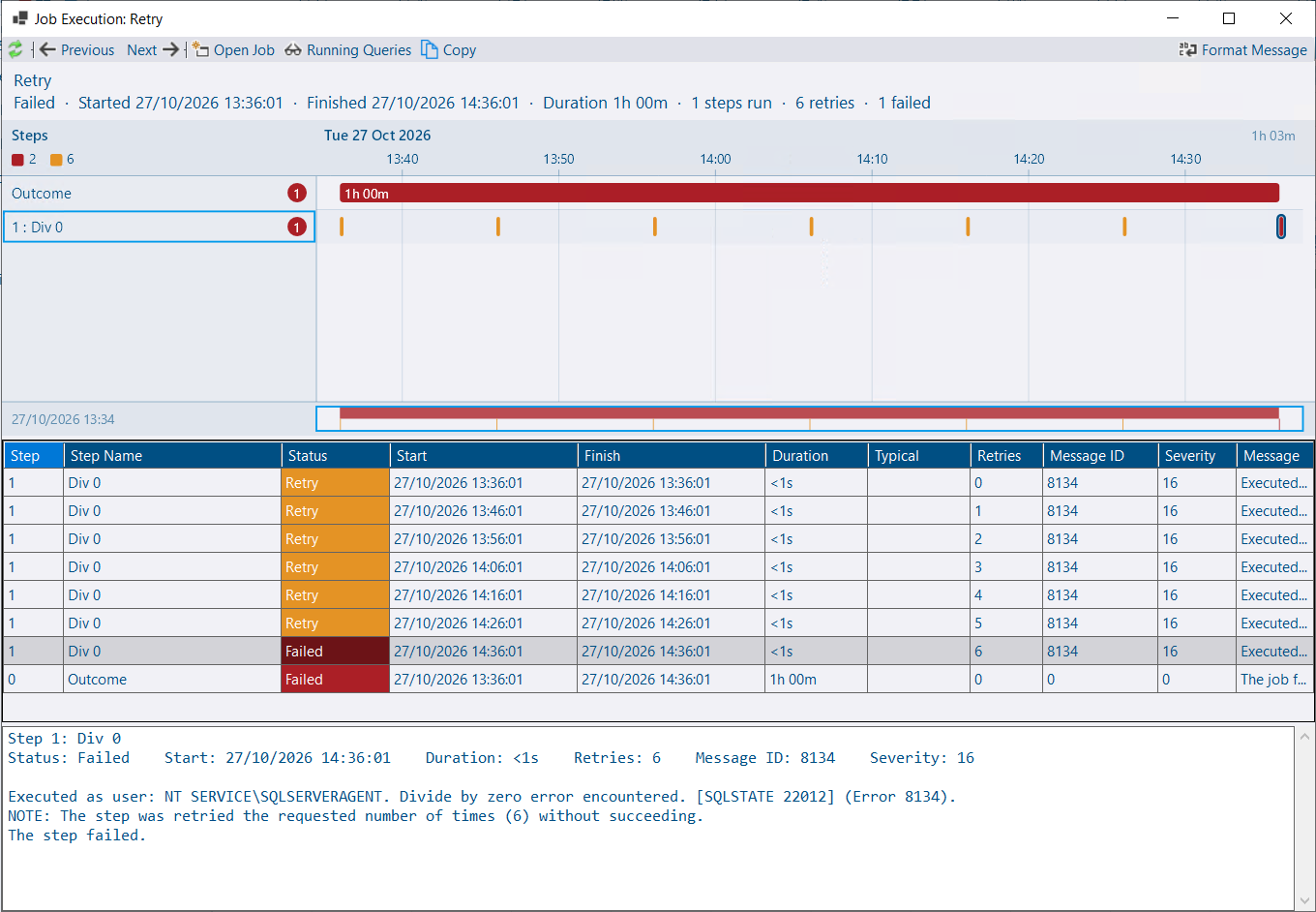

Double-click a bar to open that execution: status, duration, a timeline of its steps, and every history row, retries included. Previous and Next move through the job’s other executions. A Typical column is the average duration of the last 30 successful runs of that step, and a step at least twice typical and a minute longer is highlighted. Running Queries opens the snapshot for the run. Jobs that are still running are on the timeline, with in-progress rows in the execution window.

Zoom, scroll and expanded instances are kept when you refresh or come back to the same node.

The previous obfuscation (¬=!) used a passphrase that is in the public source, so anyone with the file could decrypt it. Those values are still read. The service re-protects them on start, and the config tool does the same when it saves. An older build of DBA Dash cannot read the upgraded values, so keep the new build with the upgraded file.

Each secret gets its own nonce, so the same password on two connections is stored as two different values. A value that cannot be decrypted — a config copied from another machine, or a damaged value — does not stop the config from loading. Those connections are logged and left in the file to be entered again. The service does not collect them, and it will not start if the destination password cannot be decrypted. On Linux and other platforms without DPAPI, and with config encryption off, secrets stay on the old obfuscation.

Export Config in the config tool, and DBADashConfig -a Export, writes a copy for moving DBA Dash or as a backup. The copy can protect the secrets with an export password, or leave them out (--NoSecrets) so they are entered on the new machine. The config you are running is not changed. Copying an unencrypted file to another machine leaves the machine-key secrets unreadable. The config tool lists those passwords in one grid, with a connection test and an option to use one password for every connection with the same user. See Config File.

Space Measure selects used or allocated space. The defaults are used space for databases and allocated space for pools, because a database in a pool cannot grow once allocated space reaches the pool limit. Elastic pool alerts are raised against the master database instance that collects the pool stats, one alert per instance listing each pool over the threshold. Retired pools are left out.

SQL Agent alerts raised by DBA Dash now go to the notification channel group the rule is assigned to. Drive space, backup, Azure database space and elastic pool space alerts record the rule that supplied the priority, so the notes and the close behaviour match that rule when more than one rule in the group matches.

Online databases with Service Broker enabled are visited. Availability group secondaries are skipped. Queue depth comes from the queue’s internal table. Queues that have messages are also read for the age of the oldest message waiting to be received, which shows a queue that is not being processed. A queue with retention on reports the count of messages still waiting, because retained messages would otherwise inflate the depth. SqlDependency queues are rolled into one row per database and schema.

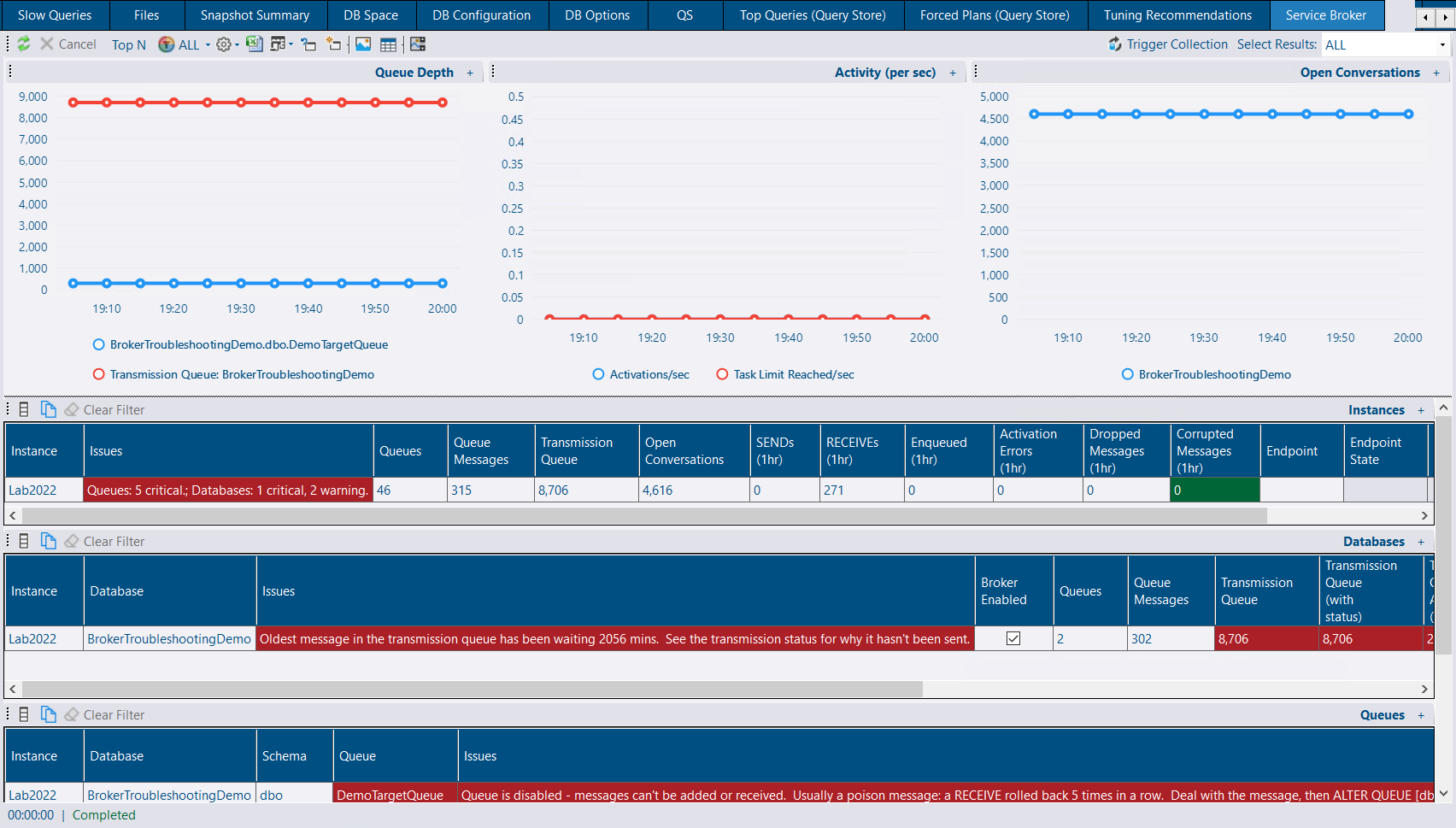

The Summary tab has a Service Broker column. The Service Broker tab, on Checks and on a database, is shown when the schedule is enabled or a collection has already run. Turning the collection off leaves the tab while that collection date remains. It lists instances, databases, queues and the transmission queue, and charts queue depth, messages sent and received, and open conversations.

A queue that cannot receive, or whose status is OFF, is critical. That is usually a poison message. A missing activation procedure with messages waiting is critical. Activation that is disabled, or that has been notified for 10 minutes while messages are still waiting, is a warning. Queue depth and message age use thresholds. The root defaults are 10,000 messages, 15 and 60 minutes for the oldest queue message, 15 and 60 minutes for the transmission queue, and 100,000 open conversations. Set them from Configure on the tab, at root, instance, database or queue level.

A Service Broker alert rule can turn each of those checks on or off. A queue disabled more than 24 hours ago is left out of the queue alerts. See Service Broker.

Physical memory above the edition’s buffer pool limit is a warning. A difference in the range often left for the operating system is information. Express and Web have the usual caps for the version, and SQL Server 2016 SP1 and later editions that gained the higher limit are treated that way. Azure SQL is left as N/A, because capacity there is the service tier.

Max server memory left at the default 2,147,483,647 MB is a warning. A value above physical memory is a warning, because it does not reserve RAM for the operating system. On a server with 16 GB or more, a value of half the physical memory or less is information, unless it is already near the edition cap. A lower setting can be deliberate when several instances share the server.

Use HTTPS is on the AI Service tab of the service config tool, next to the port. Certificate lists the Local Computer Personal store, or Automatic (self-signed). A certificate from the store should match the host in the service URL, and the AI service account needs permission to use its private key. The self-signed certificate is kept in %ProgramData%\DBADash\AI and lasts two years. The thumbprint is registered with the service URL, and each GUI keeps that pin for the service’s host and port.

Turn Use HTTPS off when a reverse proxy already terminates TLS. Keep the proxy’s https:// URL and write the proxy port in it. An https:// service URL with an explicit port other than the listener, and Use HTTPS left unset, is treated as that existing proxy setup and the service stays on HTTP. A URL with no port is not: the registered URL uses the listen port, and the service listens on HTTPS. Security:Enabled and Security:RequireHttps are not read. An existing Kestrel endpoint or listen URL is left as it is. Local mode, with no service URL, stays on HTTP and binds to localhost.

Bedrock:Url sends Converse calls to a gateway or proxy in front of Amazon Bedrock. Set it to the full URL. {model} in the URL is replaced with the model ID. With an API key set, Region can be left blank. The model list is skipped, and the configured model is used. Without an API key the region is still required, because the short-term key is signed with it. See AI Assistant.

Plan and deadlock analysis can only be submitted by someone who can use the AI service key. A user without the AIUser role can still preview the request and copy the prompt. Submit and follow-up questions stay disabled, and the status line says so.
