Query Timeout

The default query timeouts should work for most deployments of DBA Dash. If you regularly experience query timeouts for a particular collection in your environment you should consider either increasing the timeout or disabling the collection.

For example, you might experience query timeouts with the IdentityColumns collection if you have a large number of databases on your SQL instance. You might also experience issues if you have databases with very large numbers of tables. The collection only runs once a day so you might decide to increase the query timeout rather than disable the collection.

Configuring collection timeouts#

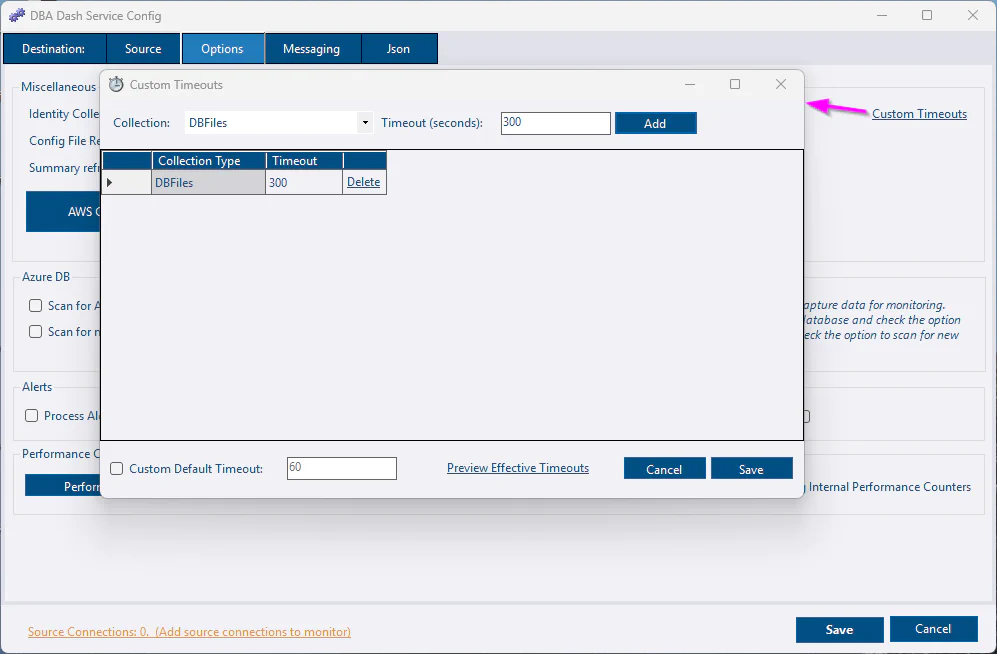

Collection timeouts can be configured using the Custom Timeouts link on the Options tab of the service configuration tool.

• Select a collection from the Collection drop down.
• The default timeout will be shown in the textbox to the right. Edit this to the value required.
• Click Add
• Click Save to save the timeouts.

Default timeout#

The default timeout applies to any collection without an explicitly defined timeout. This can be changed by checking the Custom Default Timeout checkbox and editing the timeout value. An explicitly defined user timeout will take priority, then a built-in timeout if configured for the collection. If no timeout is defined for the collection, the user default timeout is used or the system default timeout if a user default is not specified.

To see what timeout values will actually be used, click the Preview Effective Timeouts button.

Json#

Custom timeouts are stored in the commandTimeouts.json" file. If the file doesn’t exist, the application default timeouts will be used. You can now use the service config tool to edit timeouts or you can create/edit the json file manually if you prefer.

{
  "CollectionCommandTimeouts": {
    "DatabasePermissions": 900,
    "DatabasePrincipals": 900,
    "DatabaseRoleMembers": 900,
    "IdentityColumns": 900,
    "SlowQueries": 90
  },
  "DefaultCommandTimeout": 60
}

You only need to specify the collection timeouts that you want to set/override. If you just want to override the IdentityColumns collection:

{
  "CollectionCommandTimeouts": {
    "IdentityColumns": 1800
  }
}

For any collections not specified, the application defaults for that specific collection will be used if available otherwise the DefaultCommandTimeout will apply. If you change the “MinimumLevel” to “Debug” in the serilog.json file, you will see the timeout values that will be used in the Log file when the service is started.

Monitoring collection times#

In the Options tab on the DBA Dash service config tool you can click the option to “Log Internal Performance Counters”. If this option is enabled, the collection duration will be available in the “Metrics” tab in the DBA Dash GUI.

Additional timeouts#

These additional timeouts can be configured in the ServiceConfig.json file.

• ImportCommandTimeout - timeout for inserting data into the repository database. 60 seconds default.
• PurgeDataCommandTimeout - timeout for managing data retention. 600 seconds default.
• AddPartitionsCommandTimeout - timeout for creating new partitions. 300 seconds default.

{
  "ImportCommandTimeout": 60,
  "PurgeDataCommandTimeout": 600,
  "AddPartitionsCommandTimeout": 300,

}

GUI Timeouts#

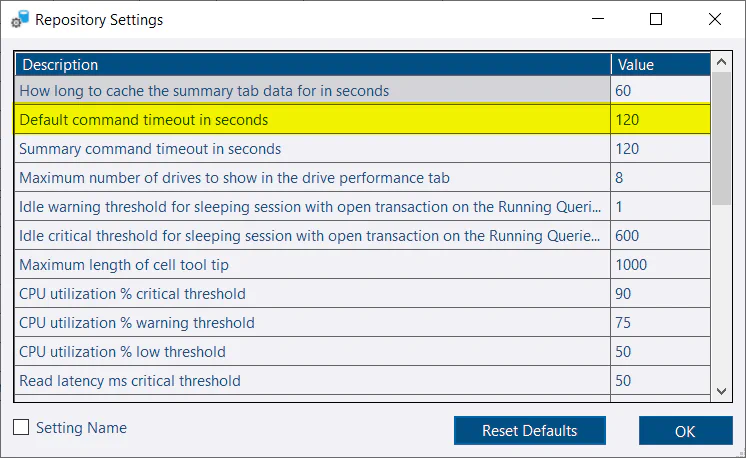

The default timeout for the GUI can also be adjusted if needed. Select Repository Settings from the Options menu and adjust the Default command timeout in seconds as required.
